In ZoneVu Frac, you can import Frac data to create a new Frac Plan or Job or append an existing Frac. This article will walk you through the process of importing a Frac and reviewing the import Spreadsheet. You can download the most up-to-date version of the Frac Import Spreadsheet here: Frac Import Spreadsheet Download or here for the Frac Append Article: Appending an Existing Frac
Note: For the best importing results, do not delete any unused columns. ZoneVu Frac's importer can handle blank columns.
Importing Data into ZoneVu Frac:

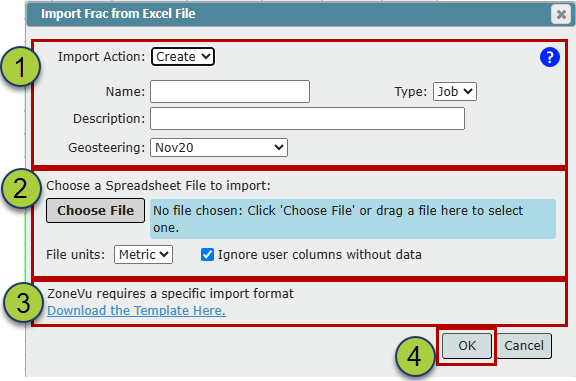

From the "Frac Plans and Jobs Menu," in the ZoneVu Frac module, click the "Import Frac from Excel File" button

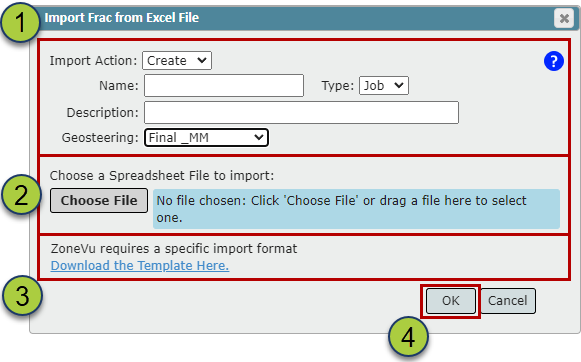

Fill out the Header Info
Name the Frac
Select the Frac Type: Plan or Job
Add a Description (Optional)
Select a Geosteering Interpretation to link
Drag & Drop or select the Frac file
You can download the Import Spreadsheet using the "Download the Template Here" hyperlink
Click the "OK" button to import the Frac

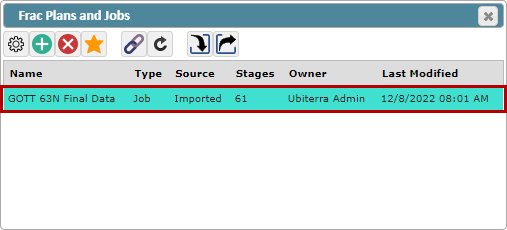

The imported Frac will now appear in the Frac List

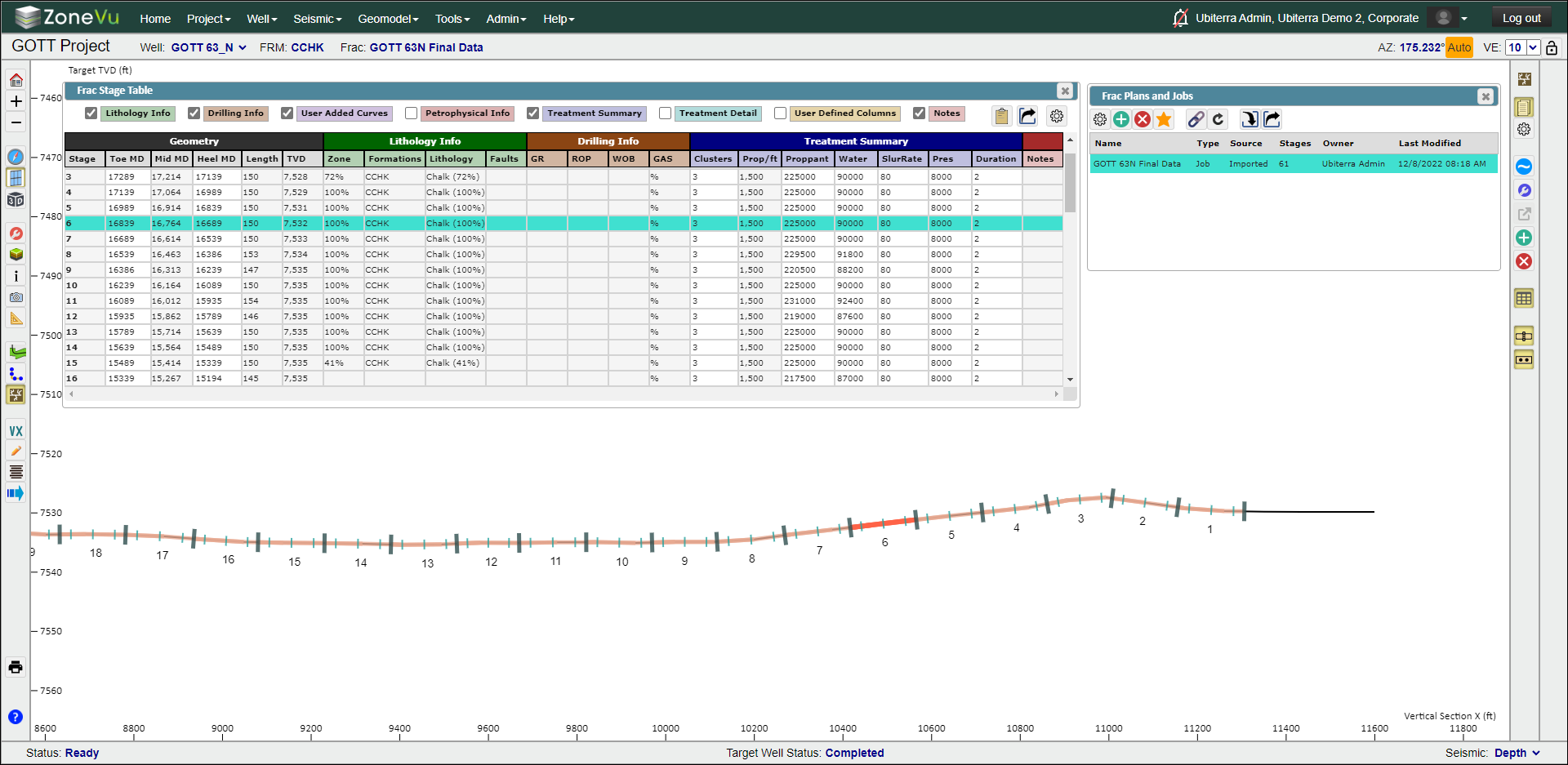

Once the import is completed, you will be able to see your Frac Stages, Plugs, and Perf Clusters along the lateral. If you open the spreadsheet button, you can also view the Frac Stage Table, which displays all of your imported frac information for that well.
Frac Import Spreadsheet: Frac Import Spreadsheet Download
Only the Stage Number, Toe md, and Heel md columns on the Stage tab are required. All other data in the Spreadsheet is optional. ZoneVu Frac uses the Column Headers and Tab Names to import the data; the Column order does not matter.
The column headers have been colored to help guide what data is Required (Yellow), Suggested (Grey), and Ignored (Orange). Any Ignored Columns will be auto-calculated in ZoneVu Frac after import.
Note: For the best importing results do not delete any unused columns. ZoneVu Frac's importer can handle blank columns.

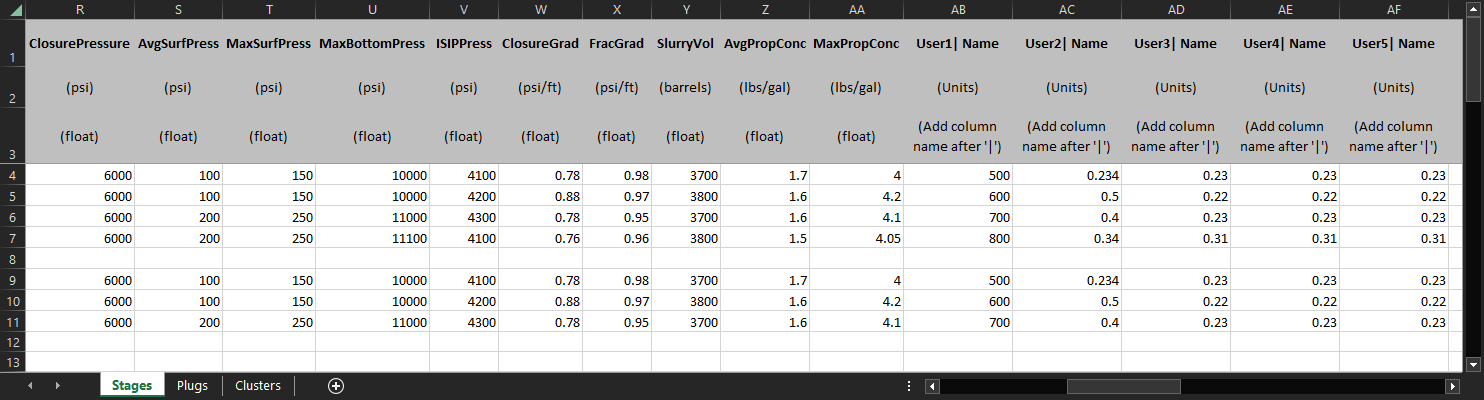

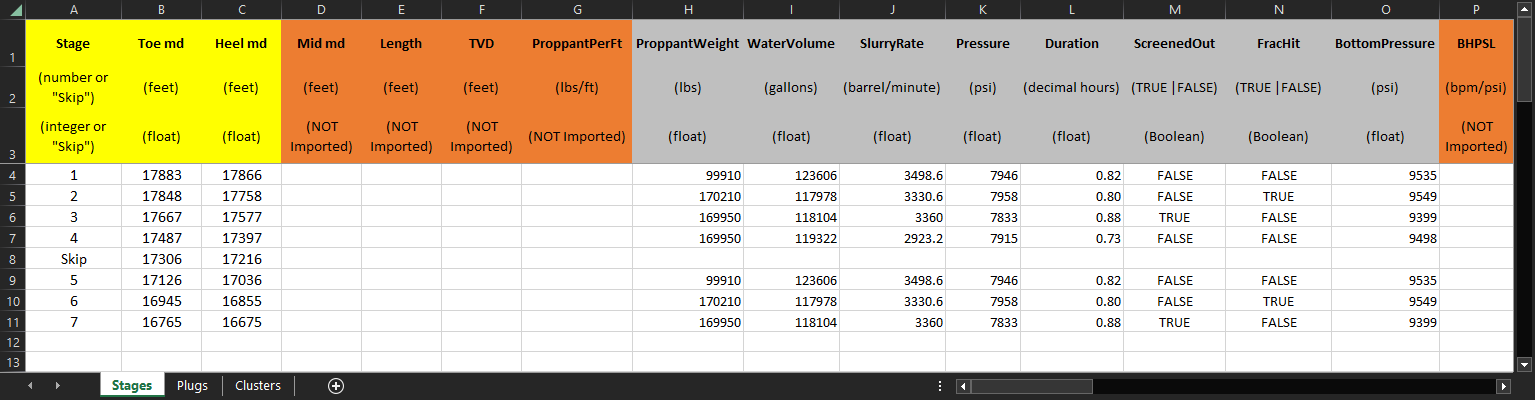

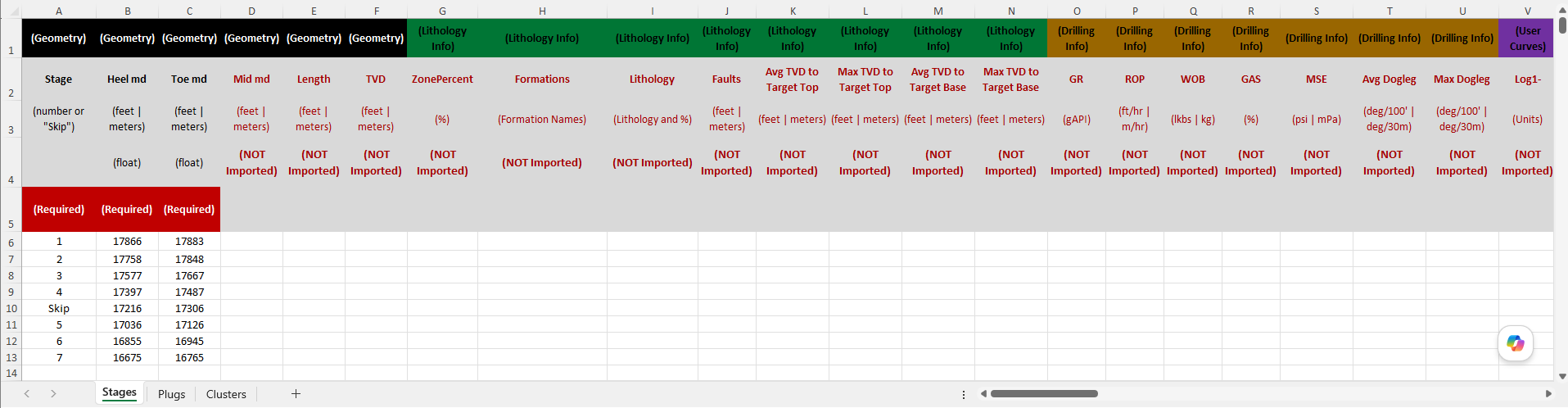

Stages Tab:
The Toe and Hell MD columns define the Stage Length which is used to calculate the computed columns in the Stage Table. The Length of the Stage cannot exceed the distance of the bounding plugs. We recommend you use the Bounding plug depths for the Stage Heel & Toe MD depths unless you define the Stage Length using different parameters (i.e. - First to last cluster).
User-Defined Columns: ZoneVu Frac allows for the import of up to five User Defined Columns populated with integer data (Numbers with decimals). ZoneVu Frac will update the Column Names in the Stage Table with any text added after the bar "|" in the header. For example, if User Defined Column #1 has a header of "User1| Acid Volumes", after import, User Defined Column #1 in the Stage Table will be renamed "Acid Volumes".
Stage: Stage Number
Toe md (ft): MD depth defining the Toeward most extent of the Stage: Usually the MD depth of the bounding Toe-Plug
Heel md (ft): MD depth defining the Heelward most extent of the Stage: Usually the MD depth of the bounding Heel-Plug
*Mid md (ft): Calculated mid-Stage MD depth
*Length (ft): Stage Length calculated from the Toe MD and Heel MD inputs
*TVD (ft): TVD Depth of the Wellbore at the mid-Stage MD depth
*ProppantPerFt (lbs/ft): Proppant-Per Foot calculated using the Stage Length and Total Proppant Weight

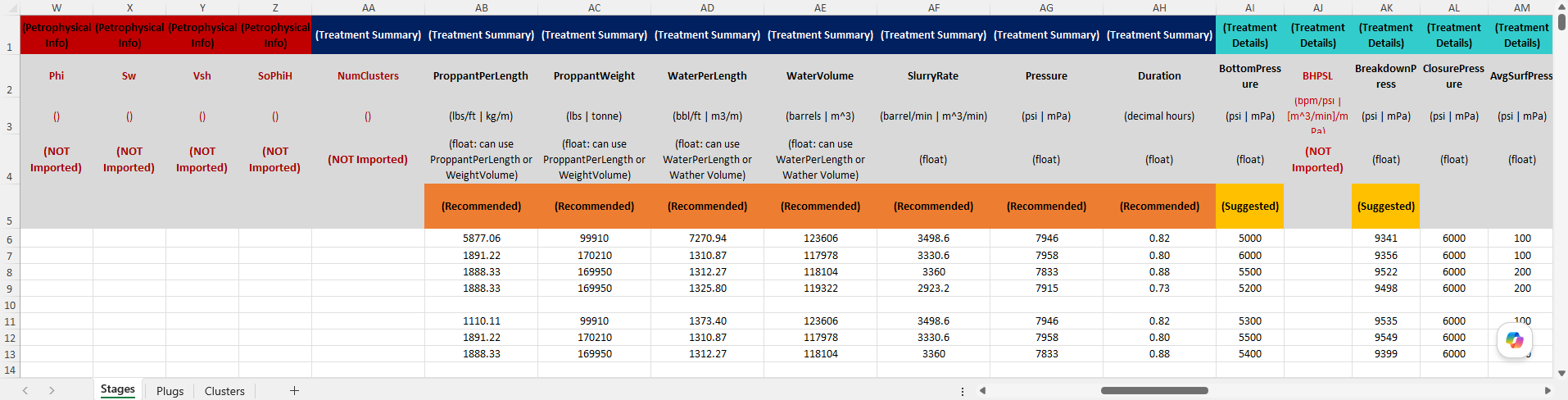

ProppantWeight (lbs): Total Proppant Weight for the Stage
WaterVolume (gallons): Total Water Volume for the Stage
SlurryRate (barrel/minute): Pumping rate for the Stage
Pressure (psi): Pumping Pressure for the Stage
Duration (decimal hours): Duration of the
ScreenedOut (TRUE | FALSE): Boolean values capturing if the Staged Screened out
FracHit (TRUE | FALSE): Boolean values capturing if the Stage caused a Frac Hit on a nearby Well

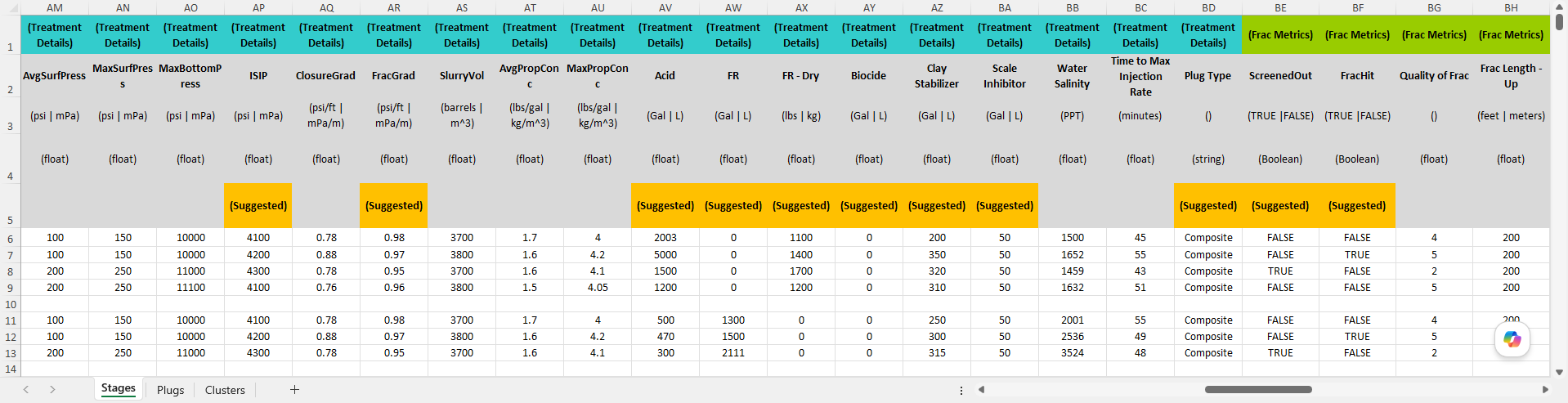

BottomPressure (psi): Bottomhole pressure for the Stage
*BHPSL (bpm/psi): Calculated - Slurry Rate / Bottom Hole Pressure
BreakdownPress (psi): Breakdown Pressure of the Stage
ClosurePressure (psi): Closure Pressure of the Stage
AvgSurfPress (psi): Average Surface Pressure of the Stage
MaxSurfPress (psi): Maximum Surface Pressure of the Stage
MaxBottomPress (psi): Maximum Bottom Hole Pressure of the Stage
ISIPPress (psi): ISIP Pressure of the Stage
ClosureGrad (psi/ft): Closure Gradient of the Stage
FracGrad (psi/ft): Frac Gradient of the Stage
SlurryVol (barrels): Total Slurry Volume for the Stage
AvgPropConc (lbs/gal): Average proppant concentration of the Slurry
MaxPropConc (lbs/gal): Maximum proppant concentration of the Slurry

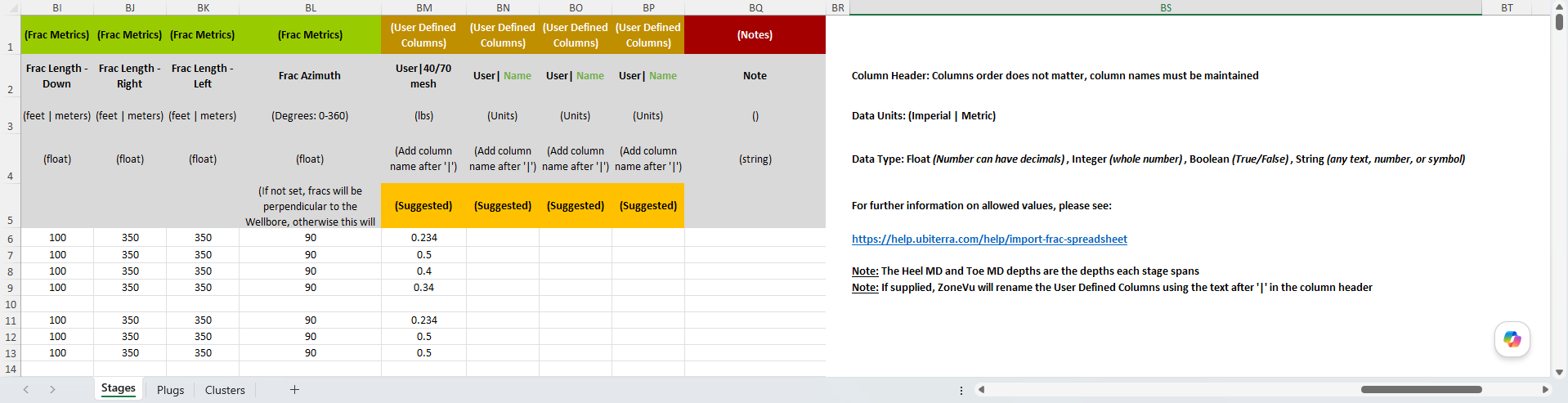

User1| Name (integer): User Defined Column #1. All Text after the '|' will be used to update the Stage Table Column header
User2| Name (integer): User Defined Column #2. All Text after the '|' will be used to update the Stage Table Column header
User3| Name (integer): User Defined Column #3. All Text after the '|' will be used to update the Stage Table Column header
User4| Name (integer): User Defined Column #4. All Text after the '|' will be used to update the Stage Table Column header
User5| Name (integer): User Defined Column #5. All Text after the '|' will be used to update the Stage Table Column header
Note (text): Notes related to the Stage

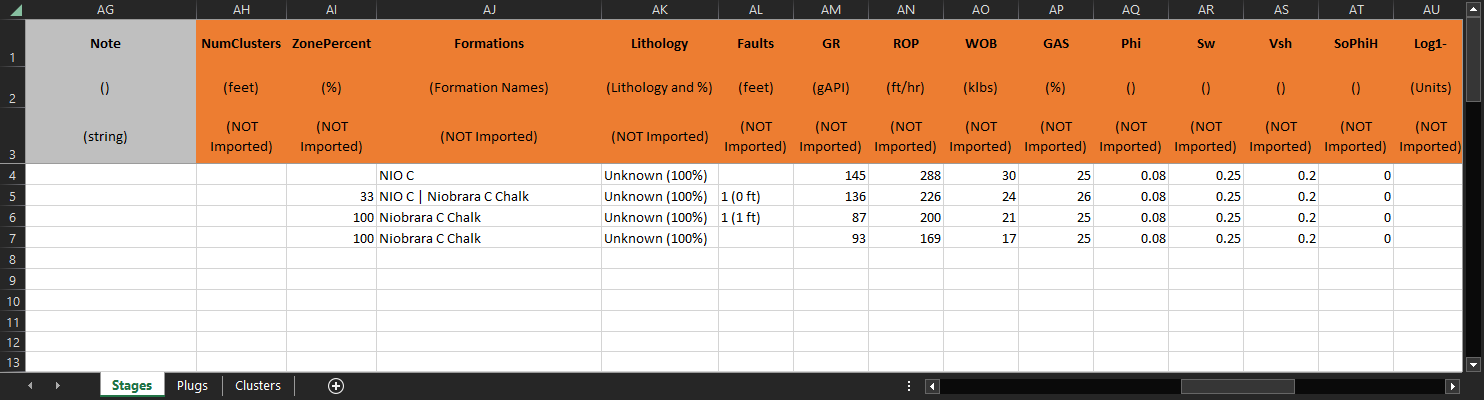

*NumClusters: Number of clusters in the Stage
*ZonePercent (%): Calculated percent of the Stage that is in the Geologic Target, based on the associated Geosteering Interpretation
*Formations: List of all formations the Stage crosses, based on the associated Geosteering Interpretation
*Lithology (Text, %): List of all lithologies and the associated percentages the Stage encounters, based on the associated Geosteering Interpretation
*Faults (num, ft): Number of Faults and their throws that the stage crosses, based on the associated Geosteering Interpretation
*GR (API): Average Gamma-Ray Value across the Stage Length, based on the GR log used in the Geosteering Interpretation
*ROP (ft/hr): Average Rate-of-Penetration value across the Stage Length, based on the ROP log used in the Geosteering Interpretation
*WOB (klbs): Average Weight-on-Bit value across the Stage Length, based on the WOB log used in the Geosteering Interpretation
*GAS (%): Average Gas Value across the Stage Length, based on the Gas log used in the Geosteering Interpretation
*Phi (): Average Porosity value across the Stage Length, based on the Phi log or Type Well Top data used in the Geosteering Interpretation
*Sw (%): Average Water Saturation value across the Stage Length, based on the Sw log or Type Well Top data used in the Geosteering Interpretation
*Vsh (%): Average V-Shale value across the Stage Length, based on the Vsh log or Type Well Top data used in the Geosteering Interpretation
*SoPhiH (): Average SoPhiH value across the Stage Length, based on the SoPhiH log or Type Well Top data used in the Geosteering Interpretation

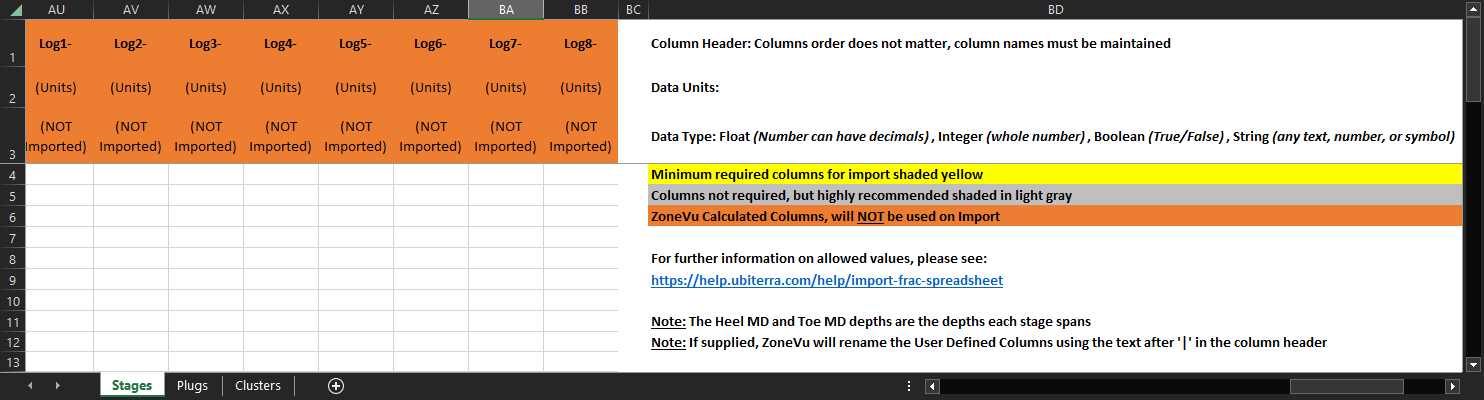

*Log1-: User Defined Log #1 - Average of the associated log across the Stage Length
*Log2-: User Defined Log #2 - Average of the associated log across the Stage Length
*Log3-: User Defined Log #3 - Average of the associated log across the Stage Length
*Log4-: User Defined Log #4 - Average of the associated log across the Stage Length
*Log5-: User Defined Log #5 - Average of the associated log across the Stage Length
*Log6-: User Defined Log #6 - Average of the associated log across the Stage Length
*Log7-: User Defined Log #7 - Average of the associated log across the Stage Length
*Log8-: User Defined Log #8 - Average of the associated log across the Stage Length
Note: any column marked with an '*' is a ZoneVu Frac calculated column and will not be imported

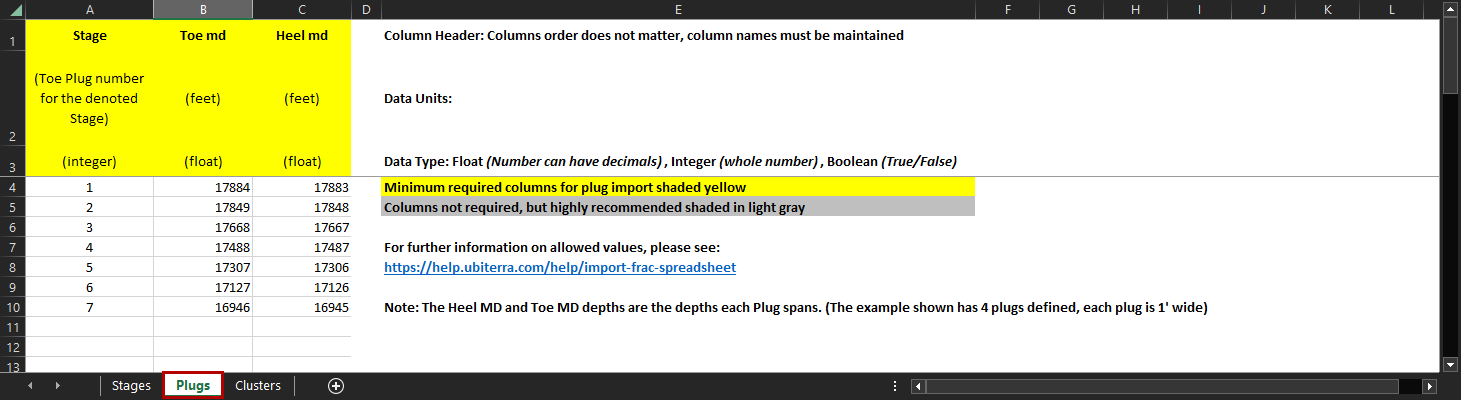

Plugs Tab:
The Plugs tab allows you to define the physical location of each plug in the Frac. In this spreadsheet, you will define the Toe plug for each stage and the plug location, including its thickness. In the example below the plugs for Stages #1-7 has been defined, with each plug having a width of 1'.
Stage: Stage Number associated with the Plug
Toe md (ft): MD depth defining the Toeward most extent of the Plug
Heel md (ft): MD depth defining the Heelward most extent of the Plug

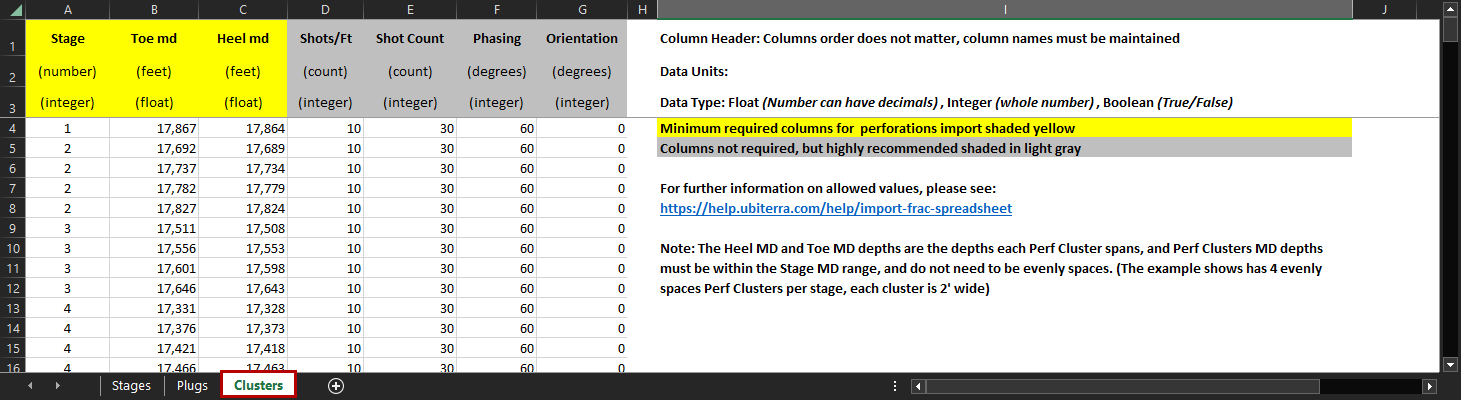

Clusters Tab:
The Clusters tab allows you to define each Perf Cluster in the Frac, with each row representing a single Perf Cluster/Gun. The Toe & Heel MD columns define the physical location of each Perf Cluster, including the Perf Cluster thickness, and the Perf Clusters do not need to be evenly spaced or consistent between Stages. The remaining 4 columns are used to define the shot count, density, phasing, and orientation.
Note: if the Orientation column is blank or set to "0" the first shot will be oriented straight up. Positive values will rotate the first shot Clockwise, and negative values will rotate the first shot Counter-Clockwise
Stage: Stage Number associated with the Perf Cluster
Toe md (ft): MD depth defining the Toeward most extent of the Perf Cluster
Heel md (ft): MD depth defining the Heelward most extent of the Perf Cluster
Shots/Ft: Number of shot-per-foot
Shot Count: Total number of Shots in the Perf Cluster
Phasing (degrees): Shot spacing around the circumference of the Wellbore
Orientation (degrees): Number of degrees the first shot is rotated from vertical (Positive values = Clockwise Rotation)
